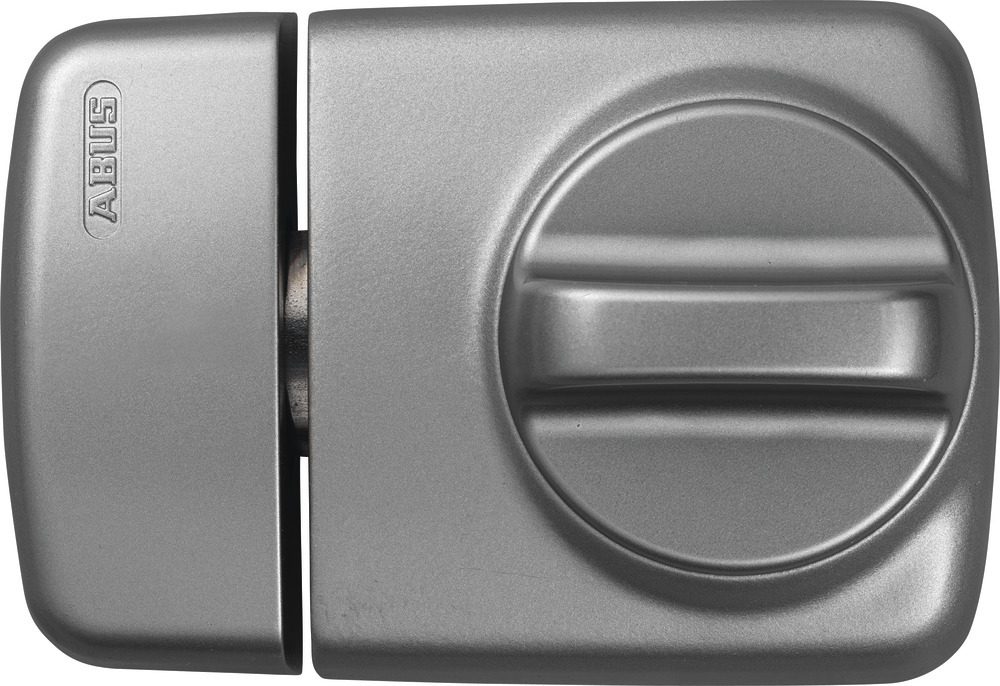

ABUS Rim Lock 7510 S

THE NARROW SOLUTION

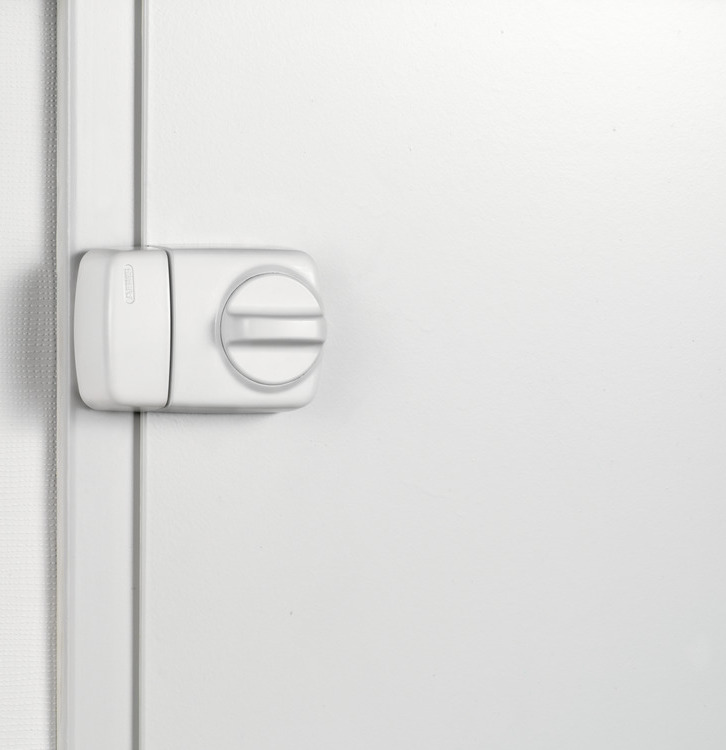

Narrow door constructions can be reliably secured with this additional lock.
Even with narrow assembly conditions, you should not have to compromise on the security of your front doors. This additional lock is suitable for doors in particularly narrow assembly conditions with rebate thicknesses from 0 to 29 millimetres and door thicknesses from 38 to 90 millimetres. It secures the locking side with heavy-duty dowels and with a strong oval bolt made of solid steel. The rotary knob on the inside ensures a quick escape route. The ABUS Pfaffenhain rim cylinder V356 ensures secure locking using one of the three keys supplied. The cylinder can be optionally protected by a PZS 80 armoured plate.

Specifications
-	-
Verpackungseinheit	1.000
Artikelgruppe	9.000
Schließung	keyed different
Anzahl mitgelieferte Schlüssel	three keys included
Verpackungsart	individual box
Security Level HaSi	9.000
Ausführung	with knob
Weight	1238.000 GRM
inkl. Alarm-Funktion	No
Färbung	silver
inkl. Sperrbügel	No
Zylinderart	Exterior cylinder
Einsatz und Anwendung 01	Rim Lock for entrance doors with narrow frames
Einsatz und Anwendung 02	For rebates between 0 - 29 mm and door thicknesses between 38 - 90 mm
Einsatz und Anwendung 03	Operated with a key on the outside and with a thumbturn on the inside
Einsatz und Anwendung 04	For entrance doors to secure the locking side (Tip: protect the hinged side additionally!)
Einsatz und Anwendung 05	Available keyed alike with ABUS padlocks and door cylinders
Technologie 01	Solid extra narrow construction
Technologie 02	Solid wall anchor: concealed fastening
Technologie 03	Backset: 45 mm
Technologie 04	Heavy duty double locking deadbolt: locks with two turns of the key
Technologie 05	With external cylinder ABUS Pfaffenhain
Technologie 06	Optional accessories: PZS 80 armoured plate to optimally protect the door cylinder
Technologie 07	Incl. three keys

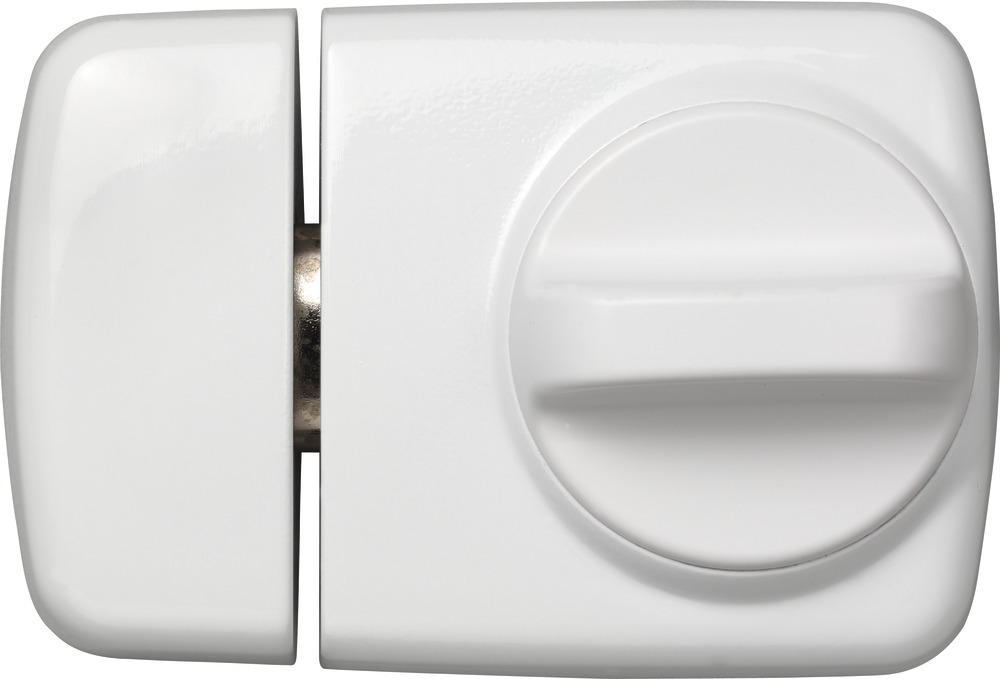

Varianten 01	Finishes: brown, white, stainless steel look
	ABUS
	Rim Lock
	ABUS
	false
Item No.	58916

All items are original Abus products.
